PRODUCTS DETAILS

Home > Products >

10.1 Inch Industrial Fanless Panel PC Windows 11 IP65 Outdoor Touchscreen

Products

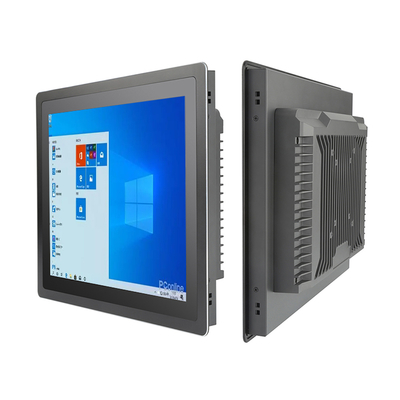

10.1 Inch Industrial Fanless Panel PC Windows 11 IP65 Outdoor Touchscreen

MOQ:	1
Price:	$178-188

Details Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

Model Number

GK-104

Document

Screen Size:

10.4 Inch

CPU Options:

J1900/I3/I5/I7/RK3288/RK3399

RAM Options:

2GB/4GB/8GB DDR3

SSD Options:

32G/64G/128G/256G

Resolution Options:

800*600 /1024*768/1920*1080

Touch Screen Type:

10-Point Capacitive Touch

Operating System:

Win 10/11/linux

Brightness:

1500 Nits

Ingress Protection:

Power Supply:

9-36V

USB Ports:

4*USB3.0

Network Ports:

2*RJ45 With 1000 Base-T

Working Temperature:

-20℃~70℃

Storage Temperature:

-40℃~80℃

Power Consumption:

Highlight:

10.1 inch industrial panel PC

fanless outdoor touchscreen computer

IP65 Windows 11 all-in-one PC

Product Description

10.1 Inch Industrial Touch Screen PC Resistive Windows 11 1500 Nits Outdoor IP65 Slim Fanless Embedded

Product Specifications

Attribute	Value
Products Status	Stock
Type	Embedded Computer
Full Screen Size	10.4 Inch/12.1 inch/15 inch/17 inch/19 inch
Widescreen Size	13.3 Inch/15.6 inch/18.5 inch/21.5 inch
CPU	J1900/I3/I5/I7/RK3288/RK3399
RAM	2GB/4GB/8GB DDR3
SSD	32G/64G/128G/256G
Resolution	800600 /1024768/1920*1080
Touch Screen Type	10-Point Capacitive Touch
Operating System	Win 10/11/linux
Product Name	Industrial Fanless Panel PC

Product Overview

Technical Specifications

Feature	GK-10	GK-12	GK-15	GK-17	GK-19
Motherboard Configuration	RK3288, J1900, i3, i5, i7
Interfaces	WiFi, 3/4G module (802.11b/g/n optional), Support 3g/4g (optional)
HDMI	1*HDMI output
USB	4*USB3.0
Network	2*RJ45 with 1000 Base-T
COM Ports	COM(RS485)*2
Power Supply	1*DC lock phoenix terminal, Support 9-36V
Audio Output	1*3.5mm audio
Other	8*GPIO (optional)
Screen Type	10.4 LCD	12.1 LCD	15 LCD	17 LCD	19 LCD
Resolution	1024*768	1024*768	1024*768	1280*1024	1280*1024
Size (W*H)	212*159mm	246*184mm	304*228mm	338*271mm	377*302mm
Contrast Ratio	500:1	500:1	700:1	900:1	900:1
Brightness	250cd/m²	250cd/m²	250cd/m²	250cd/m²	250cd/m²
Brightness Optional	1000cd/m²	1000cd/m²	1000cd/m²	1000cd/m²	1000cd/m²
Screen Ratio	4:3	4:3	4:3	5:4	5:4
Front and Back Cover	Aluminum
Craft	Glass frame paste, aluminum die casting
Color	Black, grey
Heat Dissipation	Fanless aluminum fin heat dissipation
Panel Indicator Light	Power state, hard disk state
Whole Size (mm)	28122867	31425367	37029468	40434169	44537572
Touch Screen Type	Projected capacitive touch screen
Touch Points	10 point touch
Physical Resolution	4096x4096
Response Time	<5ms
Accuracy	<2.5mm
Transparency	≥90%
Protection	The surface is coated with 1:1 PVC protective film
Working Environment	-20℃~70℃; Humidity: 10%~90%
Storage Environment	Temperature: -40℃~80℃; Humidity: 10%~90%
Installation Ways	Embedded, VESA100*100mm
Power Consumption	24W	25W	33W	34W	37W
Accessories	User Manual, certificate of qualification, warranty card
Bracket	Wall mounted bracket, embedded bracket, desktop bracket (optional)
Adapter	Power adapter

Customization Options

Customized 10.4 Inch I3 I5 I7 Generation Industrial Tablet PC Touch All in One Computer with options for 4G, 8GB RAM, 128G/256GB storage, and 1080P resolution available.

all in one desktop pc,

all in one desktop computer,

Video

27inch Monoblock Barebone All In One PC Computer Desktop Curved With Memory 8g 16g

Contact Now
