12.1 Inch Industrial Fanless Panel PC with 10-Point Capacitive Touch

Products

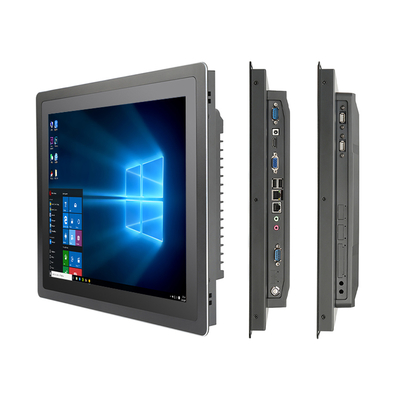

12.1 Inch Industrial Fanless Panel PC with 10-Point Capacitive Touch

MOQ:	2
Price:	$228-258

Details Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

Model Number

GK121

Document

Screen Size:

12.1 Inch

CPU Options:

J1900/I3/I5/I7/RK3288/RK3399

RAM Options:

2GB/4GB/8GB

SSD Options:

32G/64G/128G/256G/512G

Resolution:

1024*768

Touch Type:

10-Point Capacitive

Operating System:

Win 10/linux/Ubuntu

USB Ports:

4*USB3.0

Network Interface:

2*RJ45 With 1000 Base-T

Power Supply:

9-36V DC

Brightness:

250cd/m² (1000cd/m² Optional)

Contrast Ratio:

500:1

Working Temperature:

-20℃~70℃

Power Consumption:

Response Time:

Highlight:

12.1 inch industrial panel PC

fanless touch screen PC

10-point capacitive industrial PC

Product Description

12.1 Inch All-in-One LCD Monitor Touch Screen Industrial Panel PC

Product Overview

High-performance industrial panel PC featuring a 12.1-inch IPS TFT touch screen display with USB, VGA, and HMI connectivity options. Designed for embedded industrial applications with fanless operation and rugged construction.

Key Specifications

Attribute	Value
Product Status	In Stock
Type	Embedded Computer
Available Sizes	10.4", 12.1", 15", 17", 19" (Full Screen) 13.3", 15.6", 18.5", 21.5" (Widescreen)
Processor Options	J1900, i3, i5, i7, RK3288, RK3399
Memory	2GB/4GB/8GB RAM
Storage	32GB/64GB/128GB/256GB/512GB SSD (Optional)
Resolution	800×600 / 1024×768 / 1920×1080
Touch Screen	10-Point Capacitive Touch
Operating System	Windows 10, Linux, Ubuntu

Product Images

Technical Specifications

Model	GK-10	GK-12	GK-15	GK-17	GK-19
Motherboard	RK3288, J1900, i3, i5, i7
Interfaces	WiFi (802.11b/g/n optional), 3G/4G module optional, 1×HDMI, 4×USB 3.0, 2×RJ45 (1000 Base-T), 2×RS485, DC power input (9-36V), 3.5mm audio, 8×GPIO (optional)
Display Type	10.4" LCD	12.1" LCD	15" LCD	17" LCD	19" LCD
Resolution	1024×768	1024×768	1024×768	1280×1024	1280×1024
Power Consumption	24W	25W	33W	34W	37W

Construction & Features

Aluminum front and back covers with glass frame paste construction
Available in black or grey color options
Fanless aluminum fin heat dissipation system
Panel indicator lights for power and hard disk status
10-point projected capacitive touch screen with 4096×4096 resolution
Fast response time (<5ms) and high accuracy (<2.5mm)
Surface protection with 1:1 PVC protective film
Operating temperature range: -20℃ to 70℃
Multiple installation options: Embedded, VESA 100×100mm

Package Contents

User manual, certificate of qualification, warranty card
Optional brackets: wall mounted, embedded, or desktop
Power adapter

Products

MOQ:	2
Price:	$228-258

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

WPNA

Model Number

GK121

Document

Product Brochure PDF

Screen Size:

12.1 Inch

CPU Options:

J1900/I3/I5/I7/RK3288/RK3399

RAM Options:

2GB/4GB/8GB

SSD Options:

32G/64G/128G/256G/512G

Resolution:

1024*768

Touch Type:

10-Point Capacitive

Operating System:

Win 10/linux/Ubuntu

USB Ports:

4*USB3.0

Network Interface:

2*RJ45 With 1000 Base-T

Power Supply:

9-36V DC

Brightness:

250cd/m² (1000cd/m² Optional)

Contrast Ratio:

500:1

Working Temperature:

-20℃~70℃

Power Consumption:

25W

Response Time:

<5ms

Minimum Order Quantity:

Price:

$228-258

Highlight

12.1 inch industrial panel PC

fanless touch screen PC

10-point capacitive industrial PC

Product Description

12.1 Inch All-in-One LCD Monitor Touch Screen Industrial Panel PC

Product Overview

Key Specifications

Attribute	Value
Product Status	In Stock
Type	Embedded Computer
Available Sizes	10.4", 12.1", 15", 17", 19" (Full Screen) 13.3", 15.6", 18.5", 21.5" (Widescreen)
Processor Options	J1900, i3, i5, i7, RK3288, RK3399
Memory	2GB/4GB/8GB RAM
Storage	32GB/64GB/128GB/256GB/512GB SSD (Optional)
Resolution	800×600 / 1024×768 / 1920×1080
Touch Screen	10-Point Capacitive Touch
Operating System	Windows 10, Linux, Ubuntu

Product Images

Technical Specifications

Model	GK-10	GK-12	GK-15	GK-17	GK-19
Motherboard	RK3288, J1900, i3, i5, i7
Interfaces	WiFi (802.11b/g/n optional), 3G/4G module optional, 1×HDMI, 4×USB 3.0, 2×RJ45 (1000 Base-T), 2×RS485, DC power input (9-36V), 3.5mm audio, 8×GPIO (optional)
Display Type	10.4" LCD	12.1" LCD	15" LCD	17" LCD	19" LCD
Resolution	1024×768	1024×768	1024×768	1280×1024	1280×1024
Power Consumption	24W	25W	33W	34W	37W

Construction & Features

Aluminum front and back covers with glass frame paste construction
Available in black or grey color options
Fanless aluminum fin heat dissipation system
Panel indicator lights for power and hard disk status
10-point projected capacitive touch screen with 4096×4096 resolution
Fast response time (<5ms) and high accuracy (<2.5mm)
Surface protection with 1:1 PVC protective film
Operating temperature range: -20℃ to 70℃
Multiple installation options: Embedded, VESA 100×100mm

Package Contents

User manual, certificate of qualification, warranty card
Optional brackets: wall mounted, embedded, or desktop
Power adapter
